Inside UGREEN's "Liquid-Cooled" Power Bank: A Teardown of the MagFlow Pro 10,000mAh
イチケン / ICHIKEN
The UGREEN MagFlow Pro 10,000mAh is a magnetic power bank whose selling point is an active liquid-cooling system: when it starts charging a device, liquid visibly begins circulating inside the unit. Ichiken normally tries to avoid reviewing power banks, but they made an exception for this one because of its unusual cooling mechanism. This is not a review of the product as a charger. It is a teardown focused on how the cooling works and whether the internal design matches the marketing.
The Cooling Claim

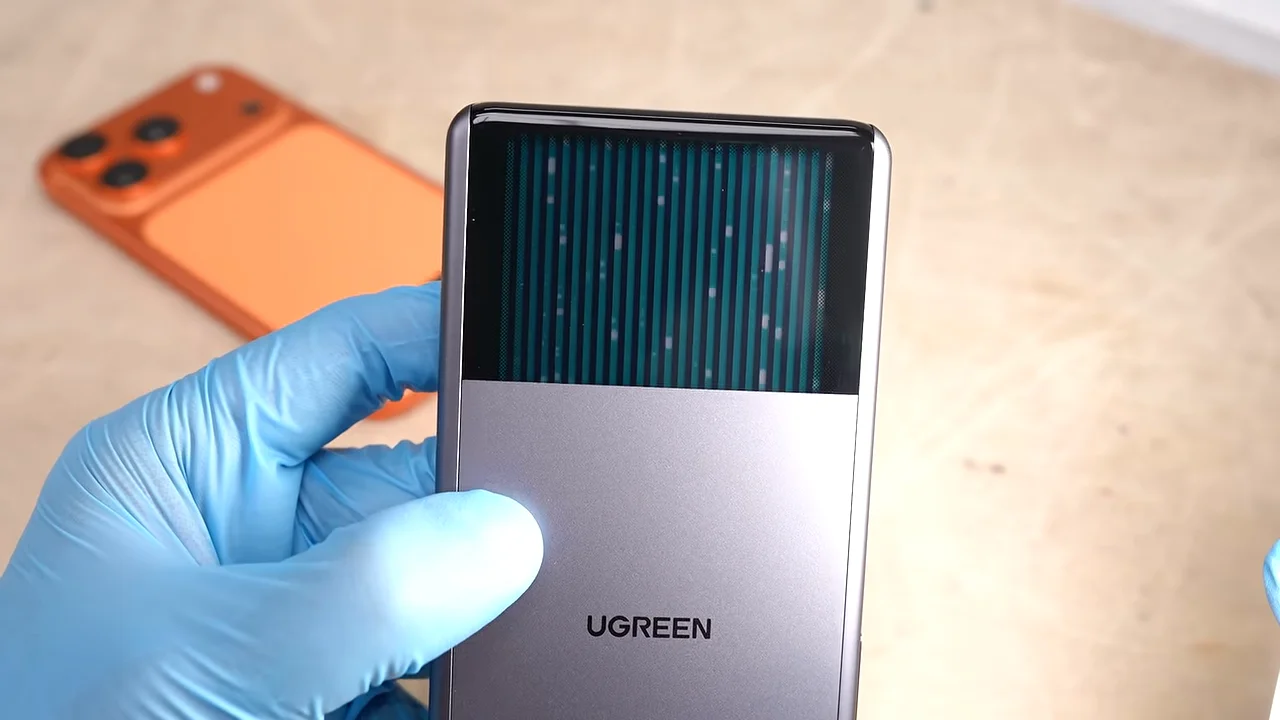

UGREEN describes the product as using active cooling that circulates liquid internally, plus copper foil and an aluminum shell. Ichiken notes that a REDMAGIC smartphone they previously disassembled used a similar mechanism. According to UGREEN, the result is a temperature about 10°C lower than competing products during wireless charging, with the unit staying around 36°C.
Features and Specifications
The power bank has a built-in charging cable that can also serve as a strap, plus one USB-C port. Both are labeled IN/OUT, so either can charge the power bank or charge other devices. Wired output reaches up to 45W, and maximum input is 30W. The multi-port power split was shown in an on-screen chart that Ichiken tells viewers to pause and read.
The back has a Qi2-compatible wireless charging pad rated at up to 25W. In Ichiken's test, it reliably drew 25W. With 25W going out, the battery was delivering about 29W, so roughly 4W was lost. Ichiken attributes this to the wireless coil stage being less efficient than wired charging. The wireless pad is output-only and cannot recharge the power bank. A side display shows remaining charge and charging status.
The active liquid cooling starts when the bank begins charging another device. UGREEN states that the cooling system itself draws only 0.02W. Ichiken remarks that the visible movement gives the product a slightly "cool" feel.
Why Two Cells in Series
The battery is two 5,000mAh cells connected in series, for 39.2Wh. Ichiken points out that more and more power banks now use two cells in series. Most USB devices charge over USB PD at around 9V, 15V, or 20V. If the battery voltage is low, the boost ratio increases, and so does the loss in the power bank's conversion circuit. Raising the pack voltage, even slightly, is a way to deliver as much of the stored energy as possible to the device being charged.
Thermal Testing: 41°C, Not 36°C
Ichiken measured temperatures during continuous 25W wireless output, using a Qi2 trigger device to keep wireless charging stable, at a room temperature of 25°C. The maximum surface temperature was about 41°C.
Ichiken attributes the gap from UGREEN's 36°C figure to different test conditions rather than a false claim. UGREEN tested with an iPhone 17, and Ichiken doubts that an iPhone would actually charge wirelessly at a constant 25W, so they expect a difference of a few degrees.
The heat was also unevenly distributed. The hottest spot was 41°C while the center was 35°C, a spread of about 6°C. Ichiken guesses that the hottest area might contain a conversion circuit that adapts the battery voltage for wireless charging.
On the coil side, the wireless charging coil ran very hot. Because the Qi2 trigger sends its power to an external electronic load, this heat came purely from the coil, and it corresponds to the coil's power loss.
Price and Value
Ichiken paid 18,980 yen, and the price has since dropped to 14,180 yen. Even with 25W Qi2, about 40Wh of capacity, and active cooling, they consider it expensive. They bought it only to take it apart and say they don't think it's good value. Its performance is above average, but its price is even further above average. For value for money, they suggest UGREEN's other Qi2-compatible power banks instead.
Disassembly: An Aluminum Frame
Ichiken started cutting the case with an ultrasonic cutter, but something felt wrong. The entire outer perimeter of the case turned out to be aluminum, so they switched to filing it apart.
The structure has three main parts:
- a resin base that holds the charging circuitry,
- an aluminum frame that wraps all the way around, and
- a lid on top.
Ichiken assumes aluminum was chosen over plastic because it conducts heat well. They also explain why a metal exterior is acceptable here but not on a wall charger. A power bank runs at a lower temperature, around 40°C, which a person can tolerate touching even on metal. It is not connected to mains power, and its highest voltage is around 20V. Ichiken thinks that is why aluminum is acceptable.
The attached USB cable runs inside to a flexible printed circuit soldered to an adapter board, which connects to the internal circuit board through a connector.
The Main Board and Heat Path
The core of the unit is a battery cell integrated with a printed circuit board, which is the power bank proper. The Qi transmitter coil sits on the back. The board holds the charge/discharge control, the power conversion circuits, and the Qi coil driver, so it generates a lot of heat, and it matches the hot area in the earlier thermal images.
The board has two layers with a silicone heat-dissipation sheet between them, apparently to spread heat evenly across the whole area. The Qi coil wiring runs along the outer casing, and that also matches a localized hot spot in the thermal footage. Ichiken comments that transmitting as much as 25W through a wireless coil really does require enough current to generate some heat.
An Unexplained Flexible Circuit
On one side there was a flexible circuit board whose purpose Ichiken could not identify. The plastic frame has a recess cut out specifically to hold it, so they believe it has some function, but they didn't figure out what. They ask viewers to leave a comment if they know.
How the Cooling Layers Stack Up
The active liquid-cooling module sits on top of the battery/board module, directly over the area that showed high temperatures in the thermal scan. The apparent intent is to transfer heat from that area into the liquid and carry it away along a long channel.
However, a sponge containing an air layer is sandwiched between the cooling module and the board module. Because air is a good insulator, Ichiken says, this design prevents the board's heat from being effectively removed by the liquid-cooling module.
The lid goes on top, with a fairly thick sheet of copper foil stuck to its underside. Ichiken's reading is that heat from the board still reaches the liquid-cooling module despite the sponge's air gap. The copper foil then spreads that heat over the area it covers and helps dissipate it through the exterior.
Comparing the Hardware With UGREEN's Illustrations
Ichiken also compared the actual internals with UGREEN's promotional images:
- Aluminum shell: The image made them expect a separate metal sheet inside the case, as some power banks have. There was no such sheet. Ichiken thinks "aluminum shell" refers to the aluminum outer frame.
- Liquid-cooling tank: It was exactly as they had imagined.
- Copper layer: It looked like a vapor chamber in the image, but it turned out to be copper foil.
Ichiken notes that the image is labeled as an illustration and that they haven't tested the thermal design, so they stop short of a firm verdict. Still, they feel that removing the liquid-cooling part and spreading heat over a larger area with copper foil, graphite sheets, and silicone gap fillers might transfer heat better. They acknowledge that it isn't that simple in reality. They also think marketing, meaning appeal through visual novelty and technical features, is part of why this cooling configuration was chosen.
The Liquid-Cooling Module Up Close
The pump is easier to see from the back, and everything else in the module is flow channel. With the system running, some channels carry fast-moving liquid and others slow-moving liquid. Right after the pump outlet the streams converge, with one fast-flowing channel continuing on and the flow then turning into a slower channel. From there the path continues through fast and slow sections, winds around, and returns to the pump.
Many heat-generating components sit around the pump, with the circuit board directly beneath it, so heat from there enters the liquid. The thermal images support this: the temperature is high just after the pump outlet and drops as the channel runs to the far left. Because this area got quite warm during charging and discharging, Ichiken wonders whether more heat is actually being carried away than they had expected.
A Piezoelectric Pump and a Two-Tone Liquid
Ichiken wasn't sure what type of pump is used and guessed it was probably piezoelectric. The pump has three terminals. Using one as a common reference, they probed the other two and found voltages reaching nearly 100V at peak. They take that operating voltage as a sign that it is probably a piezoelectric element.
The liquid itself shows white and green regions. Ichiken first thought the white parts were bubbles, but the white portion moves downward, so it doesn't appear to be air. They think the green part is liquid and the white part is a liquid that is even heavier.
Conclusion: Toward Active Cooling
Ichiken closes by saying that power bank cooling seems to be moving from traditional passive cooling toward active cooling. They point to Anker, which has already announced a power bank with forced-air cooling. Two questions remain open from the teardown: what the mystery flexible circuit does, and whether this liquid-cooling setup actually outperforms a simpler heat-spreading design.
